ESD Solder Fume Extractor | FumeCube Dual Arm 230V | USA/ASIA Plug 230V | 50 mm Arm Kit

FumeCube Dual Arm 230V USA-ASIA Plug 230V Solder Fume Extraction Systems 50 mm Arm Kit Purex - 366.072065.D50-410161
ESD

ESD Solder Fume Extractor | FumeCube Dual Arm 230V | USA/ASIA Plug 230V | 50 mm Arm Kit

366.072065.D50-410161
HS Code : 84 21 398590
Brand

1.043,03 € exc tax
Packaging Unit :

  Tell A Friend

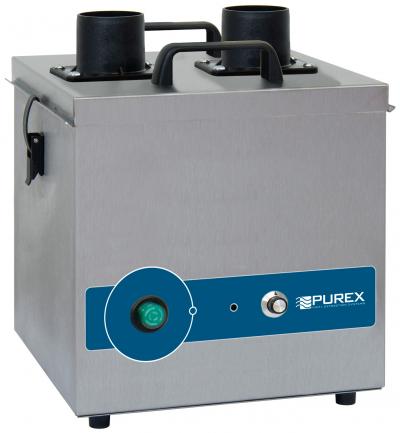

FUMECUBE DUAL ARM 50 mm Fume Extraction System

Portable extraction with single port 50 mm + 2 x ESD Arm Kit 100297ESD.

Machine Includes:
* 1 x Main Filter HEPA/Chemical (110536)
* 1 x Pre-Filter Pad F5
* 2 x 51 mm x 2 m Flexible Hose
* 4 x Connecting Cuffs
* 2 x Clamped Bench Bracket
* 2 x 50 mm Stainless Steel Flexible Arm & Valve
* 2 x 115 mm Conical Cowl
* 1 x USA/ASIA Power Plug 230V

FUMECUBE DUAL ARM FEATURES

• Visual and audible filter blocked warning alerts the operator when a filter starts to block and should be changed. This would avoid any down time
• Varicolor filter blocked warning system
• LED filter status: Green = OK; Yellow = Filter nearly full; RED = Replacement filter is needed
• Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
• Adjustable airflow
• Operates worldwide with no loss of performance
• Low capital and running costs
• Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
• Activated carbon filtration removes harmful gas
• Simple to install and quiet in operation
• Easy to relocate
• Precision made from Stainless steel
• Remote interface capability

Model
FumeCube 230V
Fume Extraction Category
Fume Extraction Systems
Fume Extraction Type
FumeCube Dual Arm
Voltage
230V
Wattage
0.14kW
Power Plug
USA-ASIA
Frequency
50-60Hz
Sound Level
<60dBa
Airflow
170m3/h
Dimensions
366 x 308 x 294 mm
Weight
12 Kg

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
