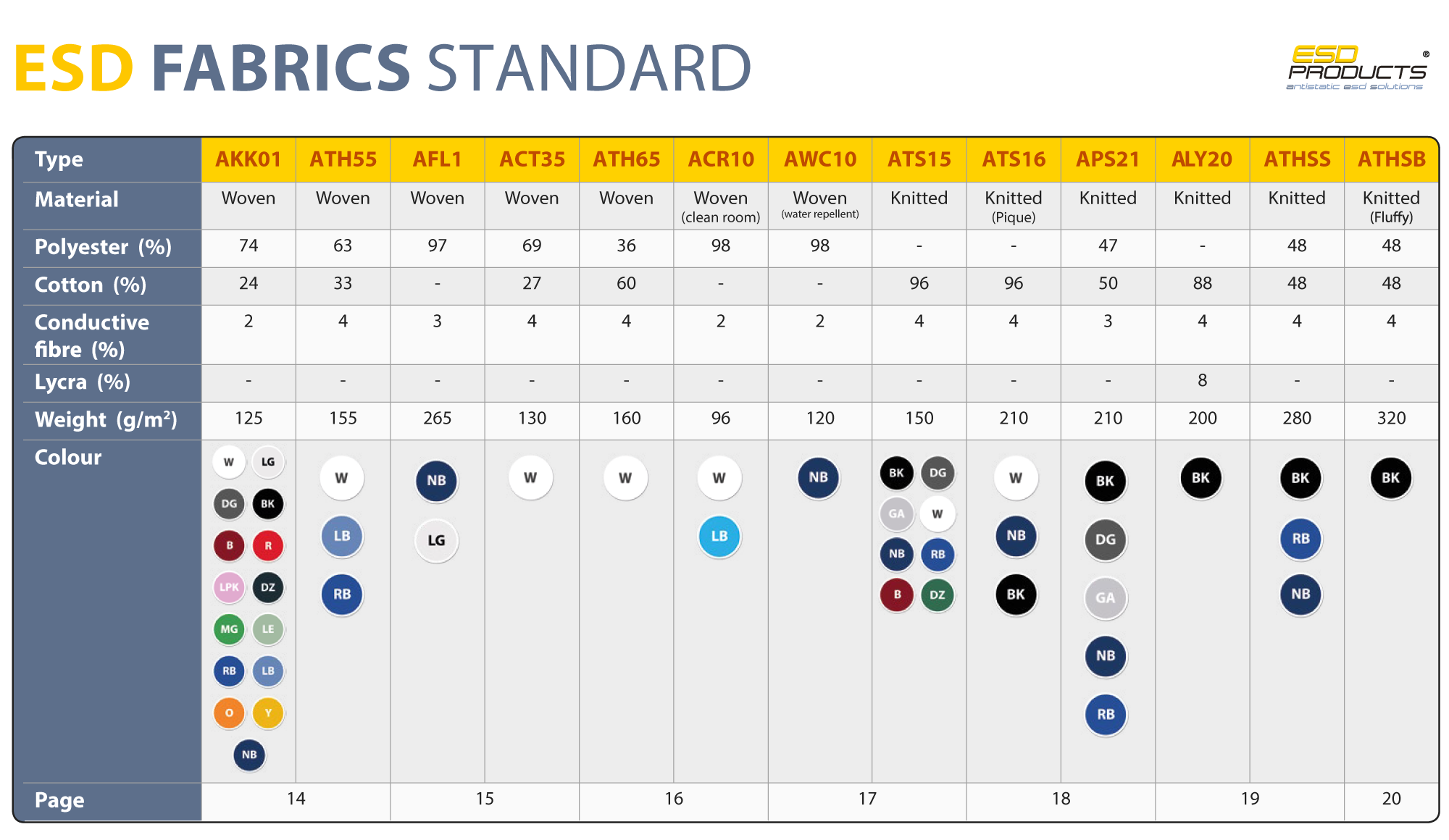

ESD CLOTHING & FABRICS GUIDE
According to IEC 61340-4-9:2016 - 61340-5-1/5-2
Standard ESD Fabrics - Woven fabrics for Coats, Smocks, Trousers, Jackets
Static dissipative fabric for Clean Room class 10-100 (ISO 4-5) (Carbon loaded yarns in 5 mm grid),
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 50 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- For Clean Room class 10-100 (ISO 4-5)
- Fabric Composition: 98% Polyester 2% Conductive fiber
- Fabric Weight: 110 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
White (W), Light Blue (LB)
DEVELOPED FOR INDUSTRIAL LAUNDERINGS
Static dissipative fabric (Carbon loaded yarns in 5 mm grid),
IEC/TS 61340-4-9-2016 Electrical properties maintained
after more than 100 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- Fabric Composition: 69% Polyester 27% Cotton 4% Conductive fiber
- Fabric Weight: 130 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 andANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
White (W)
Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018,
Developed for industrial washing.
FEATURES
- Fabric Composition: 97% polyester 3% carbon fiber
- Fabric Weight: 265 g/m2
- Colors: Light Grey, Navy Blue
- Resistivity sleeve to sleeve 2 x 109 Ohm
- Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Navy Blue (NB), Light Grey (LG)
Static dissipative fabric (Carbon loaded yarns in 5 mm grid),
ANSI/ESD STM2.1-2018
Electrical properties maintained after more than 50 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- Fabric Composition: 74% Polyester, 24% Cotton, 2% Conductive fiber
- Fabric Weight: 125 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 andANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK), Dark Gray (DG), Light Gray (LG), White (W), Burgundy (B),
Red (R), Light Pink (LPK), Dark Green (DZ), Mint Green (MG), Light Green (LE),
Navy Blue (NB), Royal Blue(RB), Light Blue (LB), Orange (O), Yellow (Y)
Static dissipative knitted fabric (with carbon yarn),
Electrical properties maintained after more then 40 industrial washings
according to IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
FEATURES
- Static dissipative knitted fabric (with carbon yarn)
- Fabric Composition: 88% Cotton 8% Lycra 4% Conductive fiber
- Fabric Weight: 200 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK)
Static dissipative knitted fabric,
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 40 industrial laundering.
FEATURES
- Static dissipative knitted fabric (with carbon yarn)
- Fabric Composition: 47% Polyester 50% Cotton 3% Conductive fiber
- Fabric Weight: 210 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK), Dark Gray (DG), Gray (GA), Navy blue (NB), Royal Blue (RB)
Static dissipative fabric (Carbon loaded yarns in 5 mm grid),
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 50 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- Fabric Composition: 63% Polyester 33% Cotton 4% Conductive fiber
- Fabric Weight: 155 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
White (W), Light Blue (LB), Royal Blue (RB)
Static dissipative fabric (Carbon loaded yarns in 5 mm grid),
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 50 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- Fabric Composition: 36% Polyester 60% Cotton 4% Conductive fiber
- Fabric Weight: 160 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
White (W)
Static dissipative knitted fabric (with carbon yard),
Electrical properties maintained after more then 40 industrial washings
according to IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
FEATURES
- Static dissipative knitted fabric (with carbon yard)
- Fluffy inner side
- Fabric Composition: 48% Polyester 48% Cotton 4% Conductive fiber
- Fabric Weight: 320 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK)
Static dissipative knitted fabric (futter),
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 40 industrial launderings.
FEATURES
- Static dissipative knitted fabric (with carbon yarn)
- Fabric Composition: 48% Polyester 48% Cotton 4% Conductive fiber
- Fabric Weight: 280 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 andANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 andANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK), Navy blue (NB), Royal blue (RB)
Static dissipative knitted fabric,
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 40 industrial launderings.
FEATURES
- Static dissipative knitted fabric (with carbon yarn)
- Fabric Composition: 96% Cotton 4% Conductive fiber
- Fabric Weight: 150 g/m2
- Finish: Crease resist, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Black (BK), Dark Gray (DG), Gray (GA), White (W), Navy blue (NB),
Royal Blue (RB), Burgundy (B), Dark Green (DZ)
Static dissipative knitted fabric,
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 40 industrial launderings.
FEATURES
- Static dissipative knitted fabric (with carbon yarn)
- Fabric Composition: 96% Cotton 4% Conductive fiber
- Fabric Weight: 150 g/m2
- Finish: Crease resist, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 40 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
White (W), Navy blue (NB), Black (BK)
Static dissipative fabric with Teflon coated for Clean Room class 1000 (Carbon loaded yarns in 5 mm grid),
IEC/TS 61340-4-9-2016
Electrical properties maintained after more than 40 industrial launderings.
FEATURES
- Static dissipative woven fabric (carbon loaded yarns in 5 mm grid)
- Water repellent material, for outdoor use
- For Clean Room also, class 1000
- Composition: 98% Polyester 2% Conductive fiber
- Fabric Weight: 120 g/m2
- Finish: Crease resists, workwear
- Resistance from point to point (Rp): 106 - 107 Ohm
- Charging time: < 2 seconds
- Electrical propoerties maintained after more then 50 industrial washings according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 - Complies with IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018
- Developed for industrial washing
AVAILABLE COLORS
Navy Blue (NB)
- Machine washable up to 40 °C
- Ironing at maximum 110 °C
- Do not use acid or alkali!
- Do not bleach!
- Tumble dry at low temperature
IEC 61340-4-9 specifies resistance measurements and recommends resistance limits.
Required resistance limits are specified in IEC 61340-5-1 [4] and ANSI/ESD S20.20 [5].
These limits are shown in Table 1.
| Type of Garment | Parameter | Resistance Limits |
| Static control garments | Resistance point-to-point | < 1.0 x 1011 Ω |
| Groundable static control garments | Resistance point-to-point and resistance to groundable points | < 1.0 x 109 Ω |
| Groundable static control garment systems | Resistance point-to-point and resistance to groundable points | < 1.0 x 109 Ω |
| Total system resistance including person, garment and grounding cord | < 3.5 x 107 Ω | |
| Total system resistance including person, garment and grounding cord | < 3.5 x 107 Ω |
The alternative test methods described in IEC/TS 61340-4-2
that are appropriate for garment testing can be grouped according to measurement parameters,
as summarised in Table 2.
| Measurement parameter | Standard/Technical Specification referenced |
| Charge decay time | IEC 61340-2-1 |
| EN 1149-3 | |
| NT ELEC 037 | |
| Field suppression | EN 1149-3 |
| Triboelectric charging< | IEC/TS 61340-4-2 |
- The warranty is strictly valid under controlled and documented
industrial laundry conditions, concern the fabric washing cycle as specified in the technical data’s. - The warranty is NOT valid if the washing process is done in a home enviroment!
- The warranty covers ESD parameters and possible sewing errors according to
IEC/TS 61340-4-9-2016 and ANSI/ESD STM2.1-2018 standard issued only! - The warranty does not cover the size and shrinkage differences within the tolerances given on the size cart!
