Limited Electrically Conductive & Antistatic Chair Floor Mat | Signa ED | Pebble Gray | 1.22 x 1.5 m x 3 mm

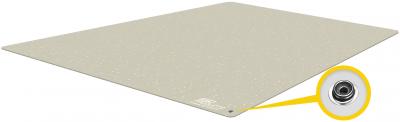

Electrostatic Dissipative Chair Floor Mat Signa ED Pebble Gray 1.22 x 1.5 m x 3 mm Antistatic ESD Rubber Floor Covering
ESD

Electrostatic Dissipative Chair Floor Mat | Signa ED | Pebble Gray | 1.22 x 1.5 m x 3 mm

860-1523.ED.2780.M.12
Brand

262,60 € exc tax
Packaging Unit :

  Tell A Friend

RUBBER FLOOR COVERINGS | Noraplan Signa ED

Electrostatically dissipative "ED" floorings for optimum ESD protection of electronic devices and equipment. Protect against electrical shock, resist most oils and greases.

Available models

[ Colour ]
KEY FEATURES

* Good for heavy usage
* High footfall sound absorption (6-8 dB)
* R9-slip resistance
* Free of PVC, phthalate plasticizers and halogens
* Increased safety thanks to high fire-retardant properties
* No coatings needed

INSTALLATION & MAINTENANCE

INSTALLATION
Successful rubber floor installation is a combination of high-quality floor covering, proper subfloor preparation and skillful workmanship. Nora installation guides provide all the information you need to help ensure that your rubber floor installation will look great and perform well for years to come.

CARE
Your nora rubber flooring requires no finishing, waxing or sealing. All AES floor coverings have a dense, nonporous and dirt-repellant surface—eliminating the need to use unfriendly, harsh cleaning chemicals. Understanding how to properly clean and maintain your new rubber floor, even by using just water, will help you keep it looking attractive for years to come.

Profile connection dimension: D + U.
Please note: noraplan® ed floorings must be treated with the nora® joint-sealing compound.
Model
Noraplan Signa ED
Floor Category
Antistatic ESD Rubber Floor Covering
Floor Type
Chair Floor Mat
Conductive / Dissipative
Electrostatically Dissipative
Colour
Pebble Gray
Fire Behavior
Cfl-s1
Resistance to EPA earth Test Method
ESD STM 7.1 / IEC 61 340-4-1
Resistance to EPA earth Requirements
10⁶ – 9 x 10⁷Ohm (Measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.) 10⁶ – 10⁹Ohm*** (Measuring the installed floorat 23 °C (± 2 °C) and < 25 % r.h., installed on an appropriate subfloorbuild up. The used adhesive has to have a permanent resistance of R < 3 x 105 Ohm according to EN 13 415. If extremely low humidity values (< 25 % relative air humidity (= r.h.)) are expected for a longer period)
Resistance To EPA Earth Electrical Behaviour/Result
10⁶ – 9 x 10⁷Ohm
Resistance To Ground Test Method
ESD STM 97. I / IEC 61 340-4-5
Resistance To Ground Requirements
For the system fl‚oor/conductive footwear (R < 5 x 106 Ohm) measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.
Resistance To Ground Electrical Behaviour/Result
≤ 3.5 x 10⁷ · Ohm
Resistance to earth Test Method
EN 1081
Resistance To Earth Electrical Behaviour/Result
10⁶ – 9 x 10⁷Ohm
Electrical behaviour Conductivity resistance
ed = ≤ 109 Ohm
Insulation resistance Test method
VDE 0100 - 600
Insulation Resistance Electrical Behaviour
≥ 1 x 105 Ohm
Charging Voltage Test method
ESD STM 97.2 / IEC 61 340-4-5
Charging Voltage Requirements
Tested with deflned conductive footwear with 23 °C and 12 % r.h.
Charging Voltage Electrical Behaviour
< 10 V
Requirements
ed = ≤ 109 Ohm ec = ≤ 106 Ohm
Thickness
3 mm
Dimensions
1.22 x 1.5 m

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
