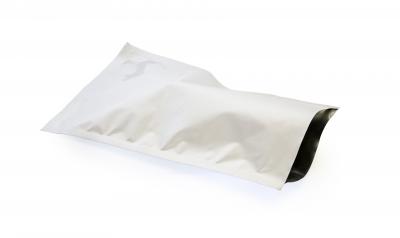

ESD/EMI Shielding Moisture Bag Open | 3 Seals | 102 x 305 mm

Anti-Static-ESD-Antistatic-Moisture-Shielding-Bag-Dri-Shield-Open
ESD

ESD/EMI Shielding Moisture Bag Open | 3 Seals | 102 x 305 mm

232.SO3.102.305.00.090.000
HS Code : 39239000000
Brand

14,41 € exc tax
Packaging Unit :

Tier Ranges Price
1 - 9 14,41 €
10 - 50 12,01 €
51 - 100+ 10,70 €

  Tell A Friend

Shielding Moisture Barrier Bags ESD are designed to protect, vacuum packaging and transport sensitive to static electricity discharge electronic devices and components . Shielding Moisture Barrier Bags ESD are according with norms IEC61340-5-1; IEC 61340-5-3 and directive RoHS. *MOQ: 10 packs (100 pcs per pack).

SHIELDING BARRIER BAGS MBB ESD/ EMI





FEATURES



  • Shielding bags dedicated for vacuum packs
  • Multiply layers structure of packaging with surface resistance < 1×1011 doesn’t let moisture in
  • Aluminum layer creating Faraday cage
  • Bags providing safety for ESDS products during the transport against electrostatic discharge and electrostatic fields
  • Shielding ESD/EMI E < 10 nJ
  • Bags have got the quality certificates PN–EN (IEC) 61340-5-1, 61340-5-3, 61340-4-8, RoHS & REACH
  • Bags have high barrier for letting steam in, which was confirmed with lab tests carried at tropical conditions (moisture 90%, 38°C)
  • Non amic material
  • Bags adapted for welding
  • Sign: informative labels ESD according to PN–EN (IEC) 61340-5-1 norm
  • Extensive manufacturing possibilities and suitable choice according to client’s needs



TECHNICAL PARAMETERS



TYPICAL SURFACE RESISTANCE

Rs= 108 – 1010

TIME OF CHARGE DECAY

from 1000V to 100V<2 seconds

SHIELDING ESD/EMI

E < 10 nJ

MVTR

0,522 g/m2 24h

CONFORMITY WITH THE NORM

PN–EN (IEC) 61340-5-1, PN–EN (IEC) 61340-5-3; PN–EN (IEC) 61340-4-8

CONFORMITY WITH UE DIRECTIVE

RoHS and REACH

THICKNESS

90µ




DIMENSIONS (mm)



Other dimensions are available on request according to customer needs!


102 x 305

203 x 508

406 x 457

102 x 406

203 x 660

406 x 508

102 x 508

203 x 762

406 x 660

102 x 660

254 x 305

406 x 762

102 x 762

254 x 406

457 x 457

152 x 305

254 x 508

457 x 508

152 x 406

254 x 660

457 x 660

152 x 508

254 x 762

457 x 762

152 x 660

305 x 406



152 x 762

305 x 508



203 x 305

305 x 660



203 x 406

305 x 762



Model
_
Packaging Category
Shielding Moisture Barrier Bags ESD/EMI
Packaging Type
ESD/EMI Shielding Moisture Bag Open
Seals
3 seals
Closure
Open
Foil colour
Silver
Material
High Shielding Barrier Laminate ESD According with Norm EN 61340-5-1 & RoHS
Overprint
ESD & Recycling Sign + LOT Number
Tolerance dimension
± 5 mm
Tolerance thickness
± 0,01 mm
Thickness
0,09 mm
Thickness In µ
90 µ
Dimensions
102 x 305 mm
Weight
0,72 Kg
Norms
IEC 61340-5-1; IEC 61340-5-3; IEC 61340-4-8; IEC 61340-2-3
Norms According with directive RoHS
SGS raport nr. TR923729
Validity
12 months
MOQ
10 Packs
Lead Time
21 Days
Delivery
exw. Or DAP + extra delivery costs to Invoice
Free delivery
2025

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
