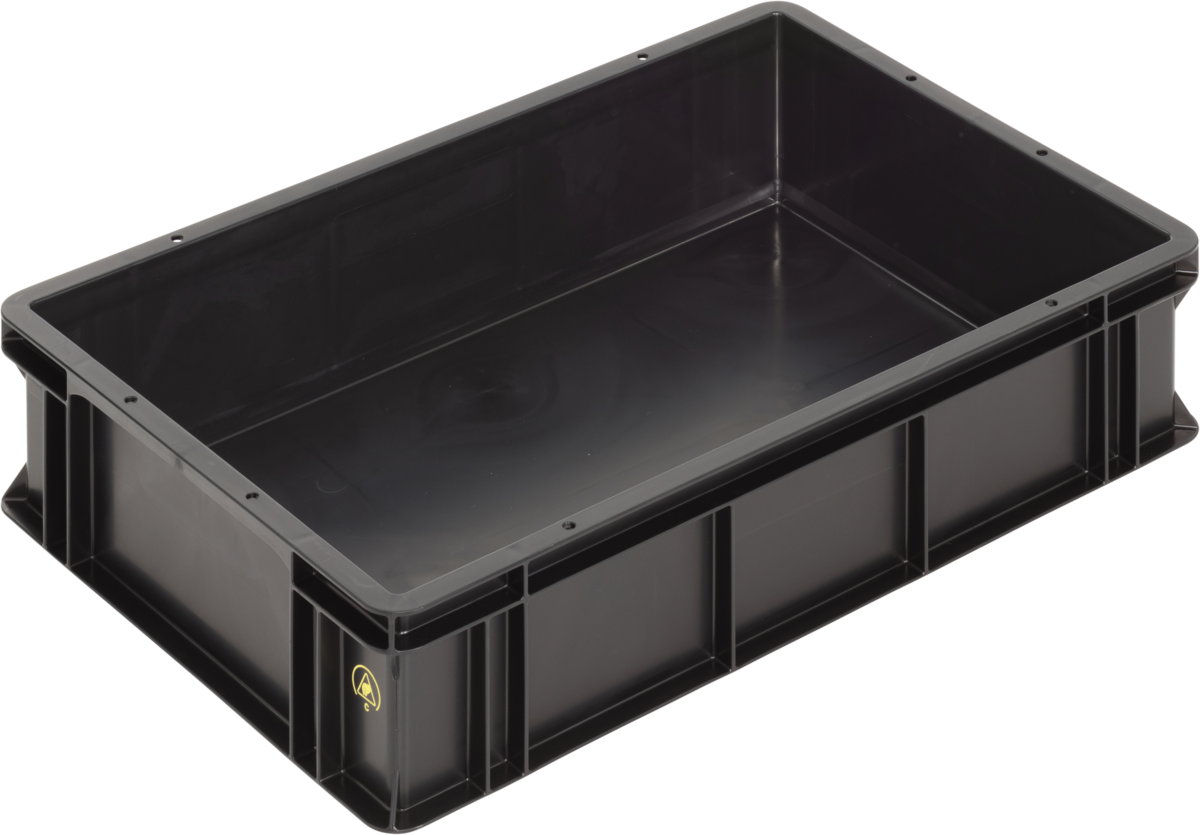

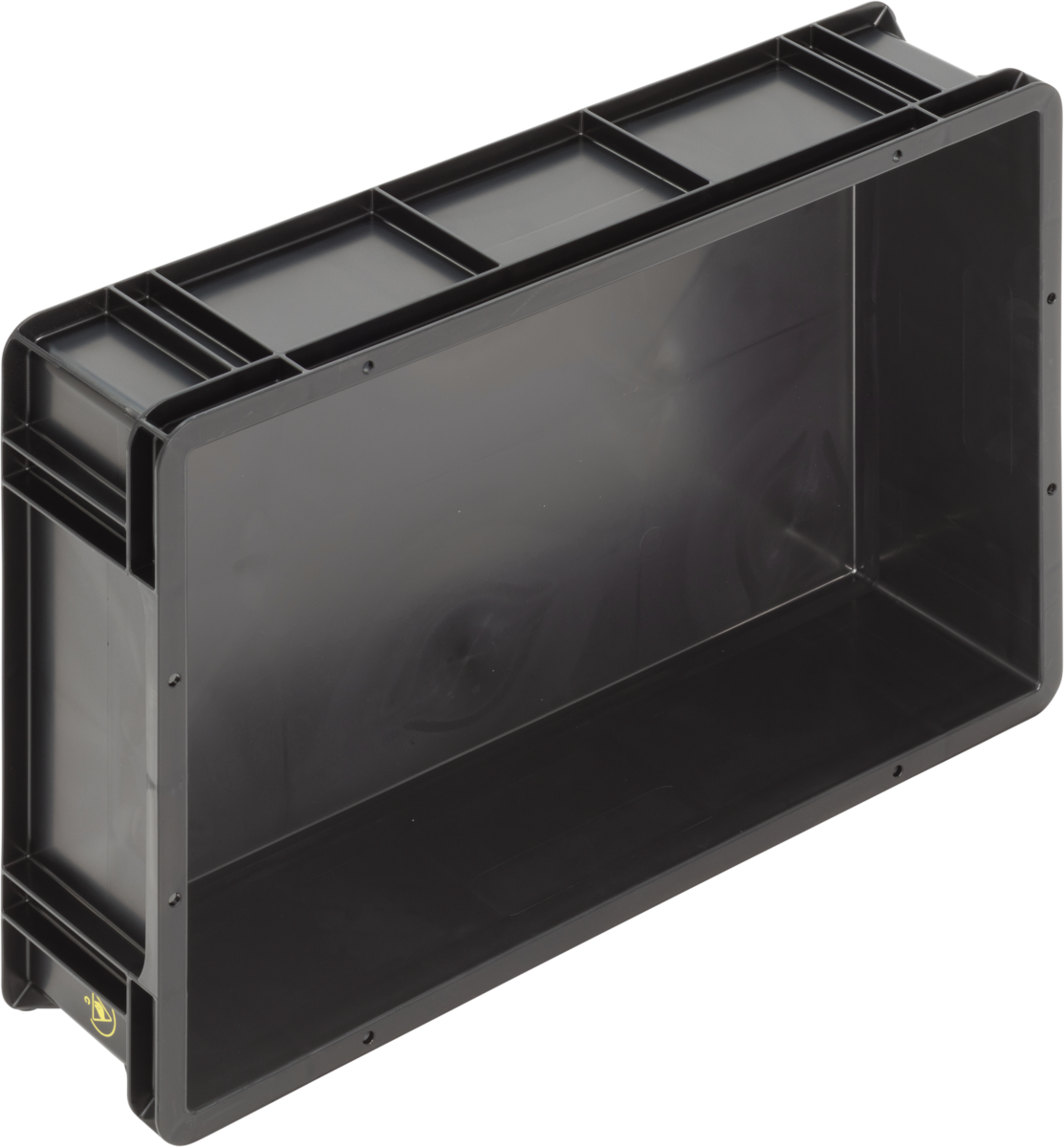

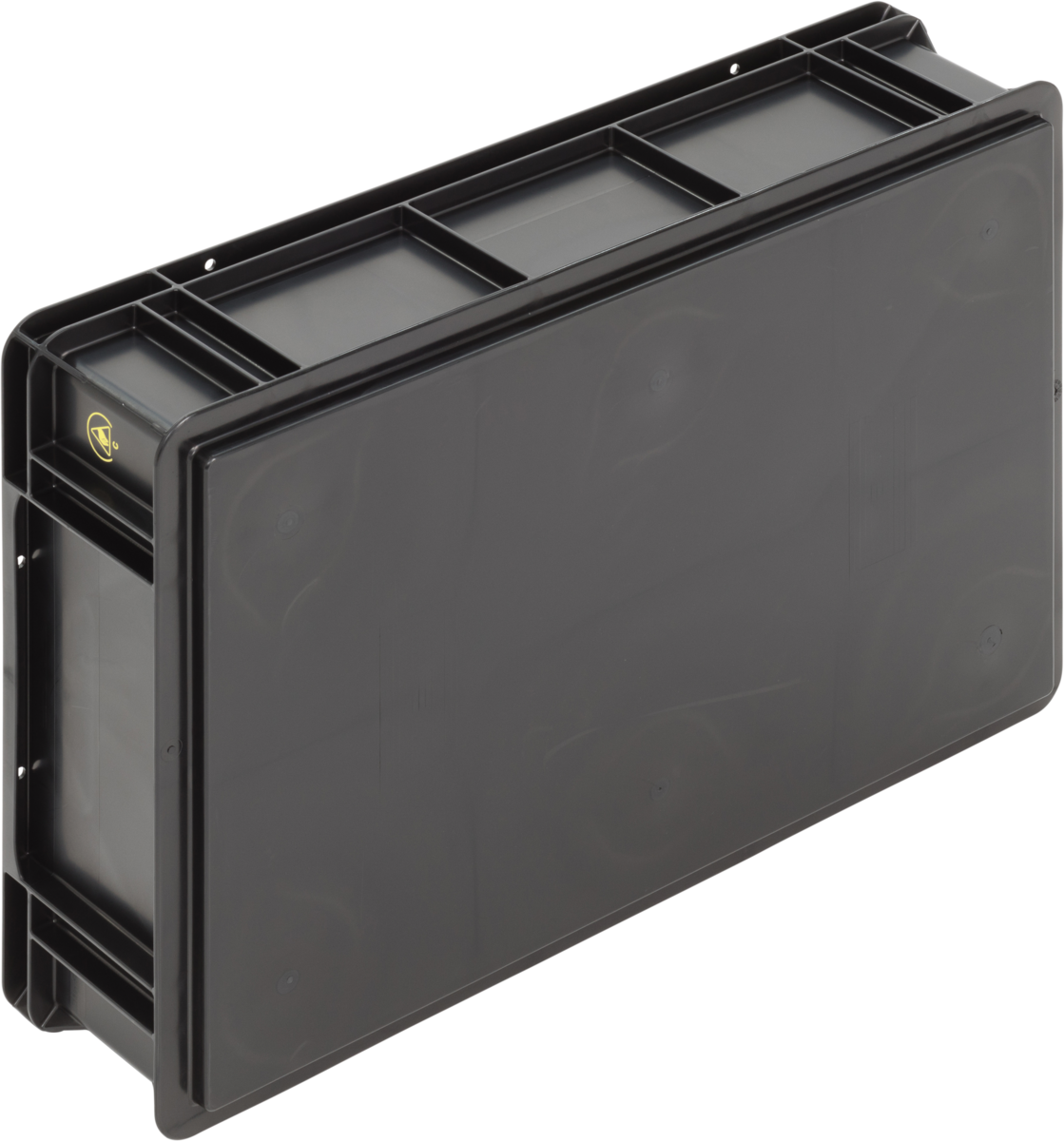

ESD Bin Container SGL-Norm, black: 600 x 400 x 145 mm, flat base

Anti-Static-ESD-Antistatic-ESD-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-6413.007.992_1004474_600x400x145_01
ESD
Anti-Static-ESD-Antistatic-ESD-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-6413.007.992_1004474_600x400x145_01
ESD-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-6413.007.992_1004474_600x400x145_03
ESD-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-6413.007.992_1004474_600x400x145_02

ESD Container SGL-Norm, Black: 600 x 400 x 145 mm, Flat Base

312.6413.007.992
HS Code : 39231090
Brand

17,88 € exc tax
Packaging Unit :

  Tell A Friend

Anti-Static SGL-Norm ESD Bin Container, Black, 600 x 400 x 145 mm, flat base.
Our ESD containers for professionals:
Our stackable ESD containers are designed for industrial use and are available in 16 different sizes and many variants thereof.
The heavy-gauge, robust design will satisfy even the most demanding application for years.
They are suitable for any form of storage or transport due to their ideal space utilisation, high degree of sound absorption and high level of permissible loading.
Heights:
The heights 120 and 175 can be found in the product group Automation container.
Special designs:
All products that are marked here as being non-stock items are available in a minimum order quantity of 500 pieces.
Reference catalog: p14.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
SGL-Norm Container
Designation
SGL-Norm
Page
14
Set for base
600 x 400 mm
Height
145 mm
Outer Dimensions L x W x H
600 x 400 x 145 mm
Inner Dimensions L x W x H
554 x 354 x 141 mm
Usable height
129 mm
Stacking height
133 mm
Load barring capacity
15 Kg
Volume (m3)
28 Ltrs
Weight
1820 g
Base designation
flat base
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Material
PPC
Number per pallet
60
Stock item
Yes
Black esd
Yes
Euro container or KLT box
Euro container or KLT box
Insert container
Yes
Base dimensions
600 x 400 mm
Foam
Yes
For basic dimension L x W (mm)
600 x 400
Dividers
Yes
Printing
Yes
Label
Yes
Lid/Case handles
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
