ESD Access Control System - ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + LCD Display

ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System LCD Display 473 AIJGO 22LB ALU LCD AES_rew
ESD
ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System LCD Display 473 AIJGO 22LB ALU LCD AES_rew
ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System LCD Display 473 AIJGO
AES_dec2_rew
AIJGO-22LB-ALU-LCD_3_rew

ESD Footwear & Wrist Strap Tester with Dual Foot Electrode | LCD Display

472.AIJGO-22LB/ALU/LCD
HS Code : 90318020
Brand

728,81 € exc tax
Packaging Unit :

  Tell A Friend

FOOTWEAR & WRIST STRAP TESTER WITH DUAL FOOT ELECTRODE + LCD DISPLAY + LIGHT BAR

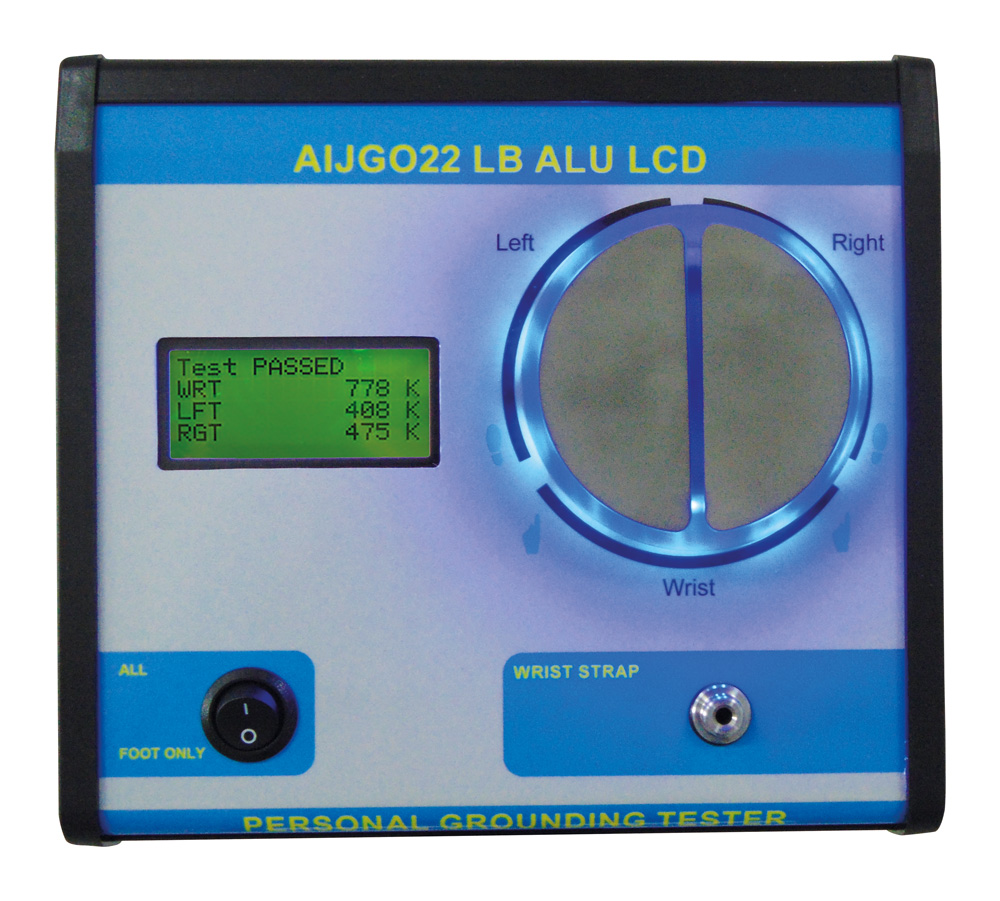

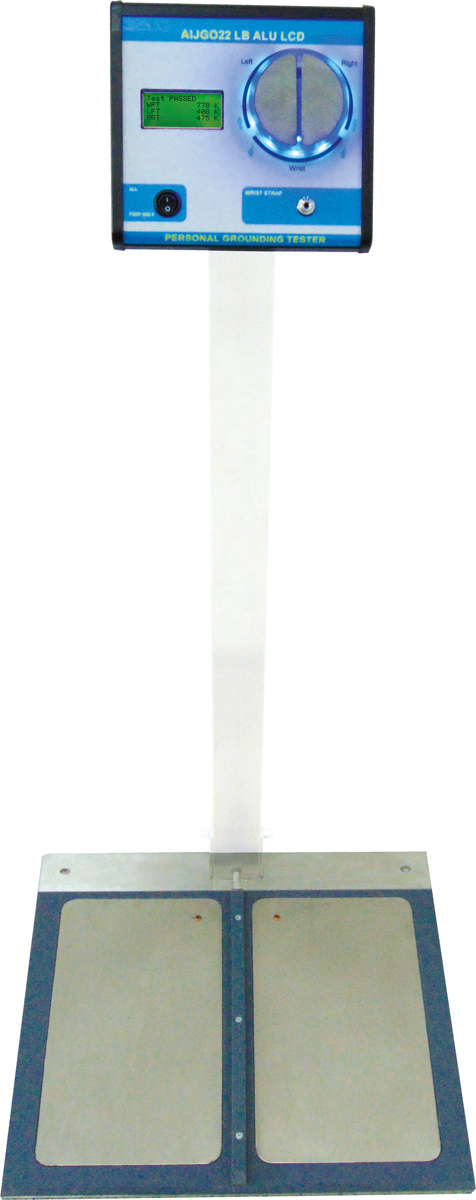

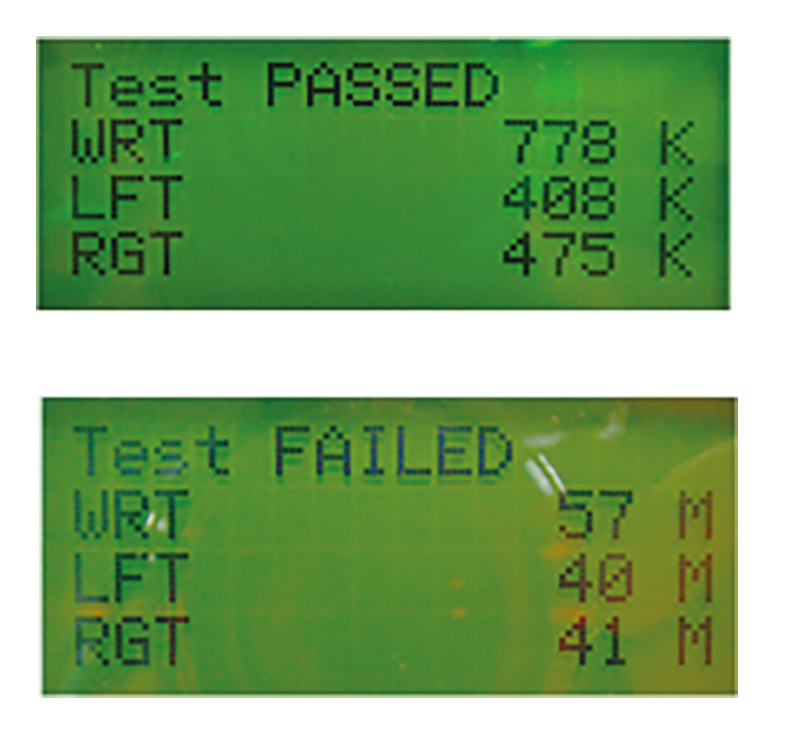

The AES AIJGO-22LB/ALU/LCD is an easy usable Footwear & Wrist strap tester with LIGHT BAR system to entrance of EPA area. It is an ideal solution for high volume of entrances where the quickness and safety is very important. High damaging-resistant construction with touch-button. It is versatile tester because you can choose the right measuring methods according to entrance regulation: Only footwear testing or footwear and wrist strap com-bined testing. You have to make only one test at the same time for the left and right foot because of the dual foot electrode. The built-in LCD display can show the results. It can be connected to any kind of entrance gate (tripod turnstile, swing gate, wing barrier,…) with a relay output. It can be installed on the wall or with stand to the floor.

MAIN PROPERTIES
* Footwear & Wrist Strap Tester for ESD area entrance
* Light (LED) and sound signal for the pass and faulty test, results separately (Wrist Strap - Left foot - Right foot)
* Both foot and wrist strap testing at the same time

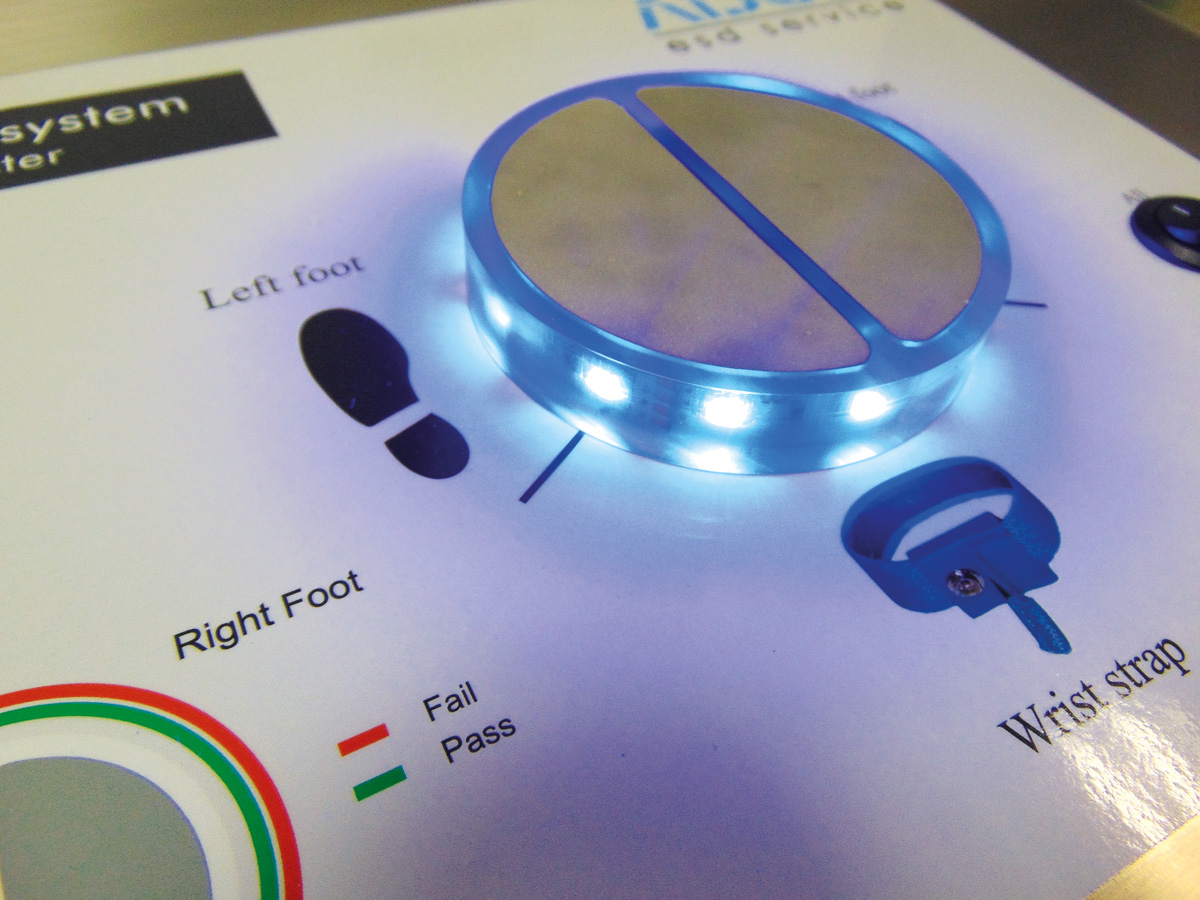

* Dual foot electrode to test the right and left foot separately
* Compliance with IEC 61340-5-1 and ANSI/ESD S20.20

The AES AIJGO-22LB/ALU is an easy usable Footwear & Wrist strap tester with LIGHT BAR system to entrance of EPA area. It is an ideal solution for high volume of entrances where the quickness and safety is very important. High damaging-resistant construction with touch-button. It is versatile tester because you can choose the right measuring methods according to entrance regulation: Only footwear testing or footwear and wrist strap com-bined testing. You have to make only one test at the same time for the left and right foot because of the dual foot electrode. It can be connected to any kind of entrance gate (tripod turnstile, swing gate, wing barrier,...) with a relay output. It can be installed on the wall or with stand to the floor.


MAIN PROPERTIES
* Footwear and Wrist Strap Tester for ESD area entrance
* Light (LED) and sound signal for the pass and faulty test, results separately (Wrist Strap - Left foot - Right foot)
* Both foot and wrist strap testing at the same time
* Dual foot electrode to test the right and left foot separately
* Compliance with IEC 61340-5-1 and ANSI/ESD S20.20AIJGO

Model
AIJGO-22LB/ALU/LCD
Tester Category
ESD Footwear & Wrist Strap Tester
Tester Type
ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + LCD Display
Test Selector
Only footwear testing or footwear and wrist strap combined testing
Footwear Resistance Limits
100 KΩ - 35 MΩ/100 MΩ
Wrist Strap Resistance Limits
750 KΩ - 35 MΩ
Test Voltage
100V
Wrist Strap Connection
Combined connection possibility, 4 mm banan plug or 10 mm snap-fastener
Relay Output To Open Entrance Gate
0,5A/60V
Power Supply
12V DC
Dimensions
215 x 195 x 65 mm
AES ESD Access Control Catalog Equipment 2018
2.33 MB
AES ESD Access Control Catalog User Guide 2018
1.81 MB
AES ESD Access Control Entrance System LIGHT BAR COMPLEX ESD
10.85 MB
AES ESD Access Control Entrance System Test Procedure
3.68 MB


All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
