ESD Service Tool Set - Service Set "ESD/EGB" with 16 tools, made from conductive material

130-2300

HS Code : 82060000

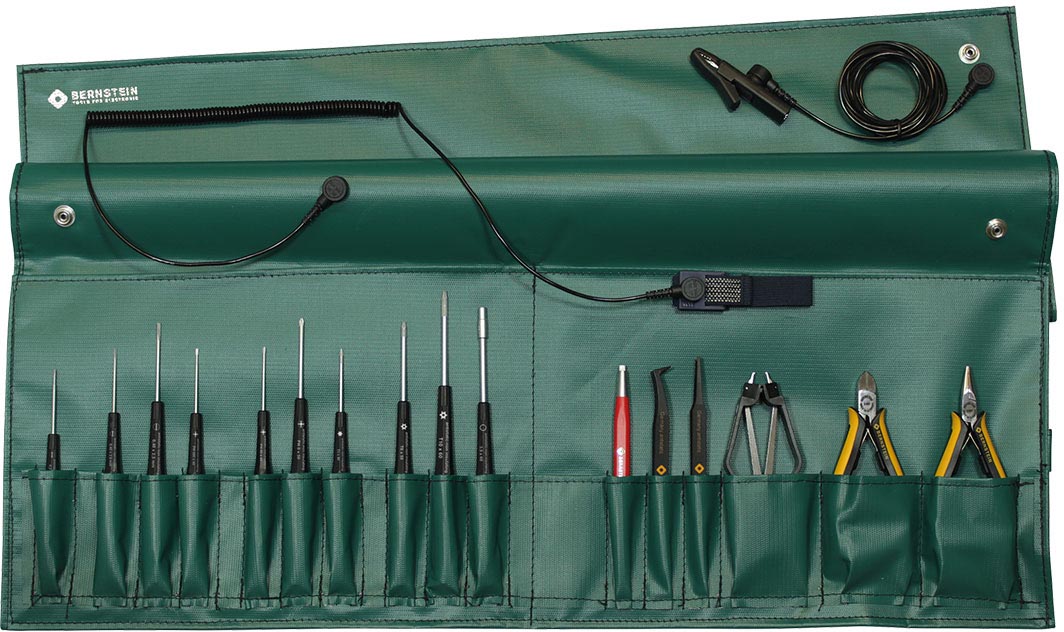

ESD Service Toolboxes - Service Set "ESD/EGB" with 16 dissipative tools placed in pockets, ready for use.
The green tool folder serves as an electrical dissipative workbench pad.
The surface resistance according to DIN 53482 is approx. 108 ohm.
The workbench pad has 3 press-stud receptacles for connecting the contact bracelet and the earth wire.
With 2 additional press-buttons the pad may be closed as tool bag.
The 2 patch pockets carry the contact bracelet and the earth wire.
Outside dimensions: 680 x 680 x 0.35 mm.

List and Description of individual tools:
2-166 - Glass fibre contact cleaner, with rotary mechanism, plastic casing
2-620 - PLCC-extractor
3-601-15 - Side cutters CLASSICline, 120 mm, semi flush, for soft wire up to 1.5 mm Ø, hard wire up to 0.4 mm Ø, mirror polished, box joint, double leaf spring with dissipative bicoloured hand guard.
3-633-15 - Snipe nose pliers CLASSICline, 120 mm, plain jaws, mirror polished, box joint, double leaf spring with dissipative bicoloured hand guard.
4-603 - Slotted screwdriver with dissipative handle, blade made from chrome vanadium, chrome-plated, 40 x 1.5 mm.
4-605 - Slotted screwdriver, as above, 40 x 2.0 mm
4-606 - Slotted screwdriver, as above, 50 x 2.5 mm
4-621 - Cross-recess screwdriver, as above, size 000
4-622 - Cross-recess screwdriver, as above, size 00
4-623 - Cross-recess screwdriver, as above, size 0
5-191 - Tweezers made from conductive, black plastic material, reinforced with glass fibre, 120 mm, with rounded tips;
5-194 - Tweezers made from conductive, black plastic material, reinforced with glass fibre, 120 mm with bent, pointed tips;
6-616 - Socket wrench with dissipative handle, blade made from chrome vanadium, nickel-plated, A/F 3.5 mm;
6-661 - TORX screwdriver, as above, T5;
6-664 L - TORX screwdriver, as above, T 8 with hole;
6-666 L - TORX screwdriver, as above, T10 with hole;
9-342 - Contact bracelet cloth armlet, allergy-free, edges and surface insulating, spiral cord, 1 Mohm safety resistor, combined press-stud and terminal connection, to DIN EN 100 015/1;
9-346 - Earth wire with 1 Mohm safety resistor, 2500 mm long, with terminal connection resp. press-stud, for connecting workbench pad and floor cover and connection to an earth potential.
