ESD Service Tool Set

AES-ESD-Service-Toolboxes-ESD-Tool-Set-ANTISTATIC-12-tools-130-2220-b00-esd-werkzeug-set-tools
AES-ESD-Service-Toolboxes-ESD-Tool-Set-ANTISTATIC-12-tools-130-2220-b00-esd-werkzeug-set-tools
AES-ESD-Service-Toolboxes-ESD-Tool-Set-ANTISTATIC-12-tools-130-2220-b00-esd-werkzeug-set-tools-2

ESD Service Tool Set - Service Set "ANTISTATIC" with 12 tools, case made from conductive material

130-2220
HS Code : 82060000
Brand

327,75 € exc tax
Packaging Unit :

  Tell A Friend

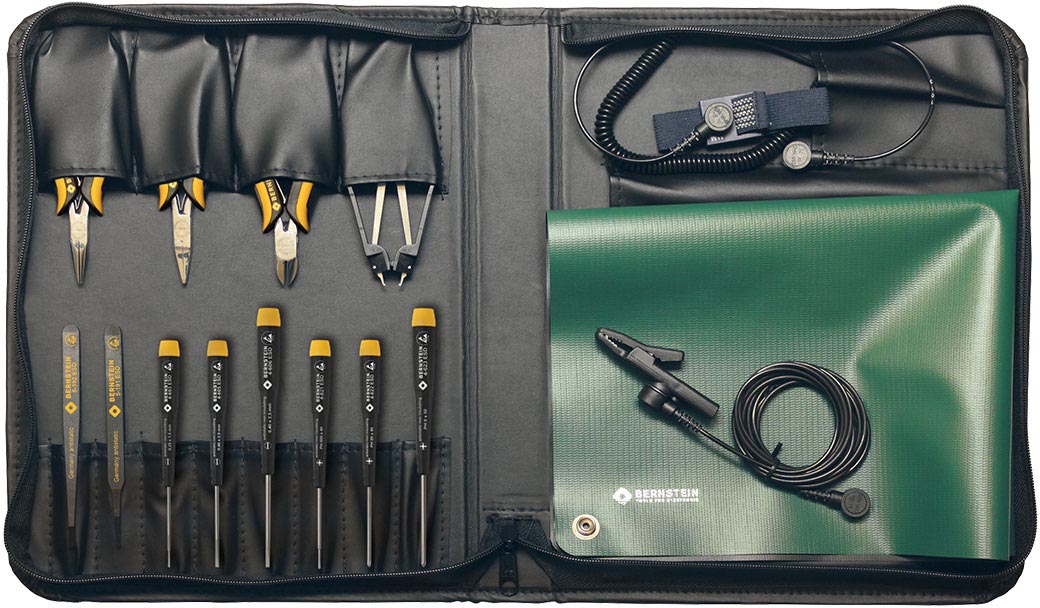

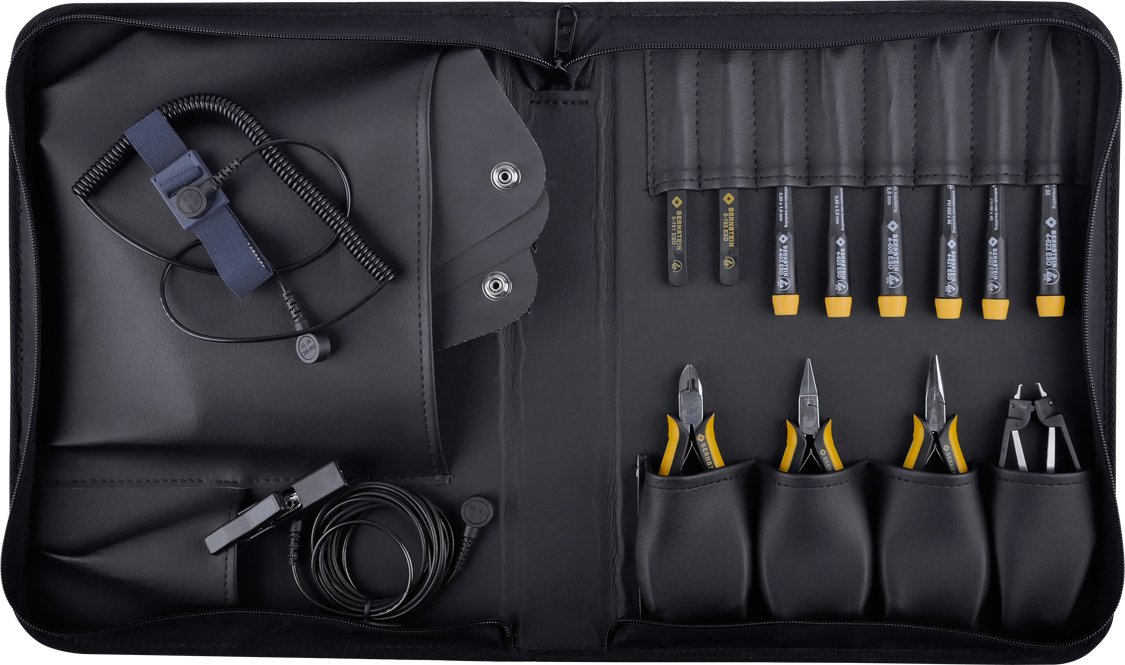

ESD Service Toolboxes - Service Set "ANTISTATIC" with 12 tools.
Case made from conductive material;
Elegant zipper case, made from dissipative black imitation leather and dissipative pockets for 12 ESD-tools and foldable ESD-workbench pad with accessories.
Outside dimensions: 320 x 250 x 50 mm (when closed)

List and Description of individual tools:
(Weight without tools: 550 Grams)
(Weight without tools: 950 Grams)
2-620 - Plcc-extractor
3-601-13 - Side cutters, 120 mm, for soft wire up to 1.5 mm Ø and hard wire up to 0.4 mm Ø, bright steel-polished, box joint, double leaf spring, with dissipative black hand guard;
3-632-13 - Flat nose pliers,120 mm, plain jaws, bright steel-polished, box joint, double leaf spring, with dissipative black hand guard;
3-633-13 - Snipe nose pliers, 120 mm, plain jaws, bright steel-polished, box joint, double leaf spring, with dissipative black hand guard;
4-601 - Slotted screwdriver with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip, 50 x 0.8 mm;
4-605 - Slotted screwdriver with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip, 60 x 2.0 mm;
4-606 - Slotted screwdriver with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip, 60 x 2.5 mm;
4-621 - Cross-recess screwdriver size 000, with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip;
4-622 - Cross-recess screwdriver size 00, with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip;
4-623 - Cross-recess screwdriver size 0, with dissipative handle, blade from chrome vanadium, chrome-plated, with black tip;
5-191 - Tweezers, made from conductive plastic material, reinforced with glass fibre, 120 mm, with straight, rounded tips;
5-192 - Tweezers, made from conductive plastic material, reinforced with glass fibre, 120 mm, with straight, 3 mm flat-hand tips;
9-354 - ESD-handling-set, consisting of: foldable green workbench pad (surface resistance according to DIN 53482: approx.108 ohm), 500 x 400 x 0.35 mm, contact bracelet 9-342, earth wire 2500 mm long with 1 Mohm safety resistor.

Model
_
Width
270
Height
55
Length
340
Weight
0.95
Page
42
AES ESD Handtools Esd Safe Precision Tools Brochure Bernstein EN

AES ESD Handtools Esd Safe Precision Tools Brochure Bernstein Merged EN

AES ESD Spannfix Esd Safe Precision Tools Clamping Devices Brochure Bernstein EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
