ESD Access Control System - ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + RFID Reader (Without any PC & Managment Software)

ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System RFID Reader 473 AIJGO 32LB ALU MON AES_rew
ESD
ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System RFID Reader 473 AIJGO 32LB ALU MON AES_rew
ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System RFID Reader 473 AIJGO

ESD Footwear & Wrist Strap Tester with Dual Foot Electrode | RFID Reader

472.AIJGO-32LB/ALU
HS Code : 903180
Brand

1.897,50 € exc tax
Packaging Unit :

  Tell A Friend

ESD FOOTWEAR & WRIST STRAP TESTER WITH DUAL FOOT ELECTRODE + RFID READER (Without any PC & Managment Software) + LIGHT BAR & COMFORT

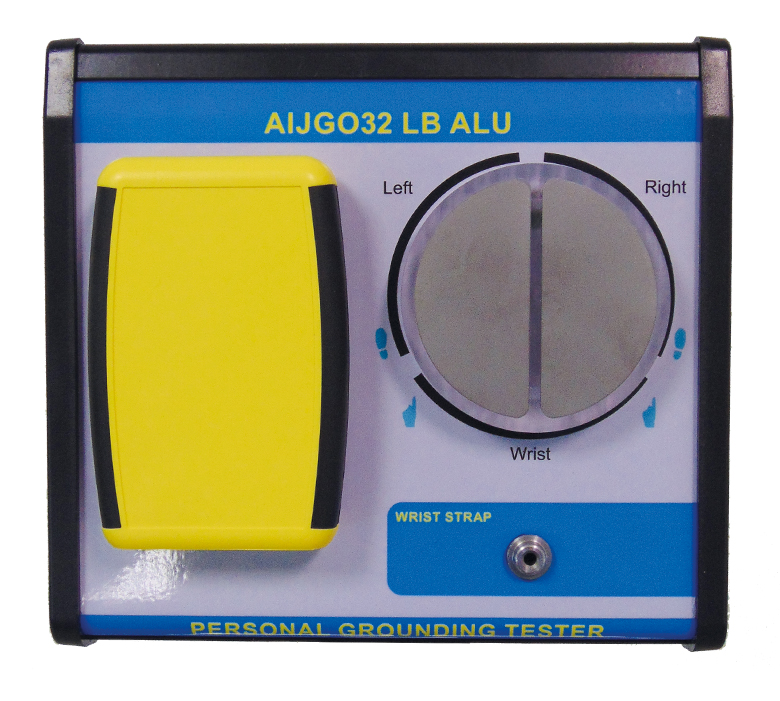

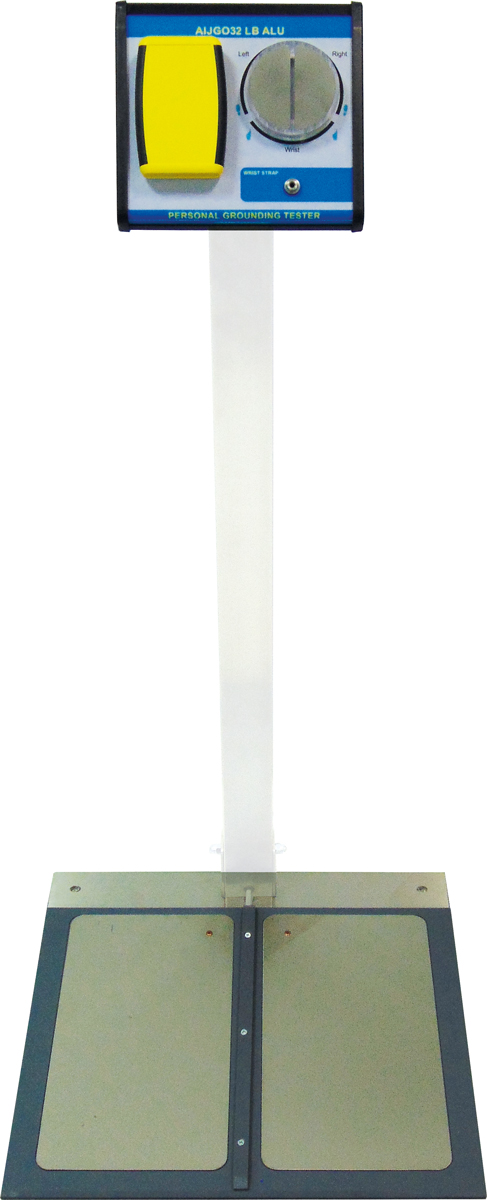

ESD Footwear & Wrist strap tester AES AIJGO-32LB/ALU is an easy usable device with LIGHT BAR & COMFORT system to en-trance of EPA area. This construction was design for those who wants to integrate the AES AIJGO ESD access control system into their exisiting systems (SAP, ORACLE, work time recording software, etc). Addiotionally for compa-nies who produces and install complex access systems.

MAIN PROPERTIES
* Footwear & Wrist Strap Tester for ESD area entrance
* LIGHT BAR system with sound to signal for the pass and faulty test, results separately (Wrist Strap - Left foot - Right foot)
* Both foot and wrist strap testing at the same time
* Dual foot electrode to test the right and left foot separately
* Compliance with IEC 61340-5-1 and ANSI/ESD S20.20

Model
AIJGO-32LB/ALU
Tester Category
ESD Footwear & Wrist Strap Tester
Tester Type
ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + RFID Reader
Test Selector
Only footwear testing or footwear and wrist strap combined testing
Footwear Resistance Limits
100 KΩ - 35 MΩ/100 MΩ
Wrist Strap Resistance Limits
750 KΩ - 35 MΩ
Test Voltage
100V
Wrist Strap Connection
Combined connection possibility, 4 mm banan plug or 10 mm snap-fastener
Relay Output To Open Entrance Gate
0,5A/60V
PC Connection
RS 232 (through D-SUB 9 cabel)
Power Supply
12V DC
Dimensions
215 x 195 x 65 mm
AES ESD Access Control Catalog Equipment 2018
2.33 MB
AES ESD Access Control Catalog User Guide 2018
1.81 MB
AES ESD Access Control Entrance System LIGHT BAR COMPLEX ESD
10.85 MB
AES ESD Access Control Entrance System Test Procedure
3.68 MB


All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
