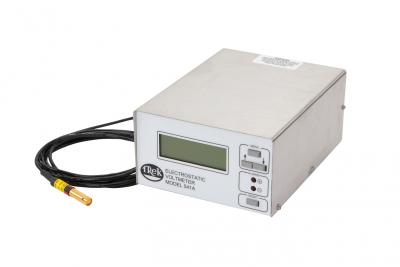

DC Feedback Electrostatic Voltmeter | USB Supported | Model 541A-1

400-541A-1-CE

HS Code : 9030.33.38.00

2.014,26 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

DC Feedback Electrostatic Voltmeter USB Supported. Range: 0 to ±1 kV DC

Technical Details

Model: Model 541A-1
Tester Category: ESD Test Equipment
Tester Type: Electrostatic Voltmeter | USB Supported
Measurement Range: 0 to ±1kV
Voltage Display: 0 to ±19.99kV
Voltage Current: 4 to 20mA
Probe-to-Surface Seperation: Range of 1 to 10 mm
Accuracy: 1±% (Full Scale)
Speed of Response: 50ms for 1kV step (10 to 90%)
Temperature Range: 15°C to 35°C
Relative Humidity: To 85%RH, non-condensing
Power Supply: Line to 15V DC Adapter
Dimensions: 102 x 152 x 216 mm
Weight: 0.77 Kg

Product Files

ESD Test Equipment Brochure AES

ESD Test Equipme..

5.80 MB

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
