ESD AUDITING Test Kit BASIC Packaging PRF-911PT

103-PRF-911PT
Brand

3.899,96 € exc tax
Packaging Unit :

  Tell A Friend

TEST PACKAGING IN ACCORDANCE
WITH ANSI/ESD STM11.11 AND STM11.12

* Measure surface resistance per ANSI/ESD STM11.11
* Measure the volume resistance of planar materials per ANSI/ESD STM11.12
* Approximates surface and volume resistivity measurements per ASTM D-257
* Resistance measurements of ESD packaging
* Ideal for measuring Static Shielding and Anti-Static Bags
* Will also measure the resistance of Moisture Barrier Bags
* Includes the PRS-801 Wide Range Resistance Meter
* Also includes a 5lbs Rubber Electrode

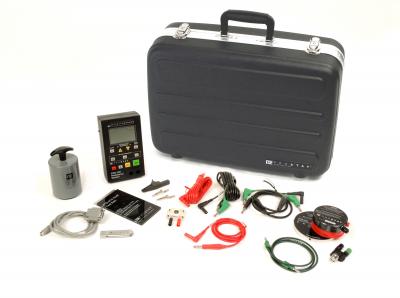

* Packaged in a hard shell Carrying Case
* Certificate of Calibration Traceable to NIST included




Features

Measure Resistance of ESD Packaging
Designed originally for flat (planar) packaging materials, the portable PRF-911 Concentric Ring test fixture will measure Surface and Volume Resistance of virtually any flat material in accordance with current ESD Association Standards.
It will measure Surface Resistance per ANSI/ESD STM11.11, and Volume Resistance per ANSI/ESD STM11.12, and will approximate surface and volume resistivity measurements per ASTM D-257.

Note that ANSI/ESD Standards are for materials employed for electrostatic discharge control, while ASTM D-257 is used to assess insulating materials utilized in electrical distribution and power applications.

Complete Packaging Test Kit

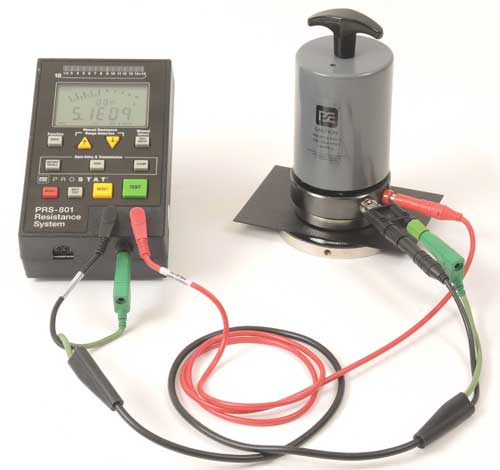

The PRF-911 Concentric Ring is to be attached to the PRS-801 Resistance System included in this Packaging Test Kit.
This system will can also give you Surface Resistavity by multiplying the surface resistance measurement in ohms by 10 to obtain surface resistivity in ohms/square.
Measure Anti-Static Bags

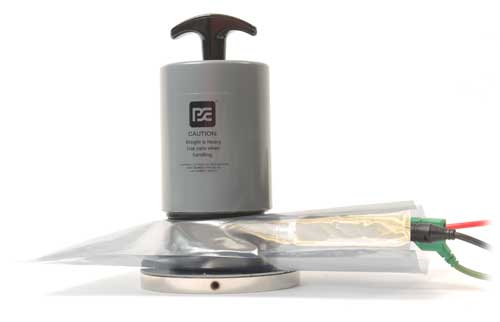

The small profile of the PRF-911 Concentric Ring allows the fixture to be inserted into small flexible containers, such as an Static Shielding, Anti-Static Bags or Moisture Barrier Bags, without having to cut the package.

Maintains Consistent Contact
The PRF-911 incorporates a spring loaded, self-aligning center electrode feature. This unusual feature aids in maintaining consistent contact of the fixture’s highly conductive rubber electrode surfaces with materials under test.

This reduces the need for frequent calibration and alignment of the fixture.

A Dual Test Bed for the either Measurement
The PTB-920 Dual Test Bed that’s included in this kit consists of an insulated test surface for ANSI/ESD STM11.11 Surface Resistance Measurements laminated to a steel test plate, which is employed for Volume Resistivity measurements.
The four inch diameter steel test bed assembly includes a banana receptacle for instrument connections during volume measurements.
Portable, Wide Range System
This ESD Packing Test Kit will accurately meausure resistance from less than 100 ohms (<1.0x102 ohms), to greater than 1.0x1012 Ohms (>1.0x1013 ohms/square). The PRF-911 is designed so that it can be connected to either the ground reference of the PRS-801 or earth ground to minimize the effects of extraneous fields and charges on the measurement.







What's included

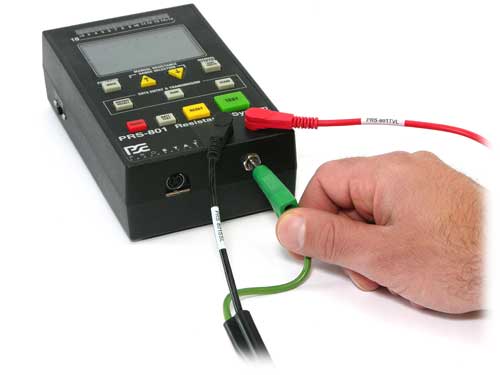

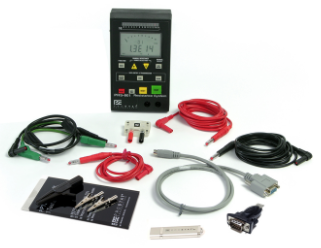

PRS-801 Resistance System Set

PORTABLE, PRECISION RESISTANCE MEASUREMENT FROM < 0.1 TO 2.0 X 1014 OHMS.

  • Accurate Wide Range Resistance Measurements: 0.1 Ω to 2.0x1014 Ω with overall nominal accuracy <�5%; Maximum range 2.0x1014 Ω
  • Variable Voltage 0.1 mv to 9.99 V for low resistance measurements
  • Constant Test voltages 10V and 100V for specification measurements to meet international and domestic ESD measurement standards
  • Auto Resistance Range Control
  • Auto Test Voltage Control
  • Automatic Electrification Period adjustment to obtain most accurate measurements
  • 80 Data Point Memory
  • Download to Excel® in batches or individual measurements
  • Fast and Flexible

PRS-800BLB 10 foot Shielded Test Lead - Black

10 FOOT SHIELDED SILICONE LEAD FOR USE WITH PRS-801

  • High Resistance Shielded Test Lead
  • 10 feet long
  • Color: Black

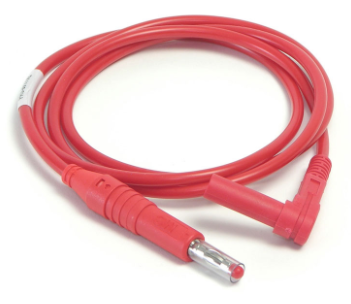

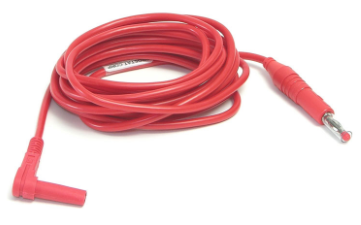

PRS-800LR 10 foot Silicone Test Lead - Red

10 FOOT SILICONE LEAD FOR USE WITH PRS-812

  • High Resistance Silicone Test Lead
  • 10 feet long
  • Color: Red

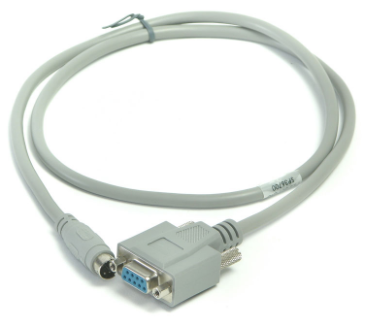

PRS-801CIC Computer Input Cable

36 INCH COMPUTER INPUT CABLE FOR PRS-801

  • Download data from your PRS-801 to your computer
  • RS-232 Data Transmission Cable
  • 36 inches long



PRS-801SSL Shielded Test Lead

HIGH RESISTANCE SHIELDED TEST LEAD FOR USE WITH PRS-801

  • High Resistance Shielded Test Lead
  • Make High End Resistance Measurements
  • Used with the PRS-801 Resistance Meter

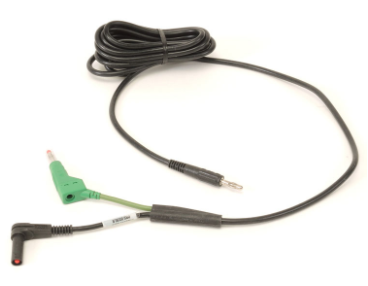

PRS-801TVL High Resistance Voltage Test Lead

HIGH RESISTANCE VOLTAGE TEST LEAD FOR USE WITH PRS-801

  • High Resistance Voltage Test Lead
  • Make High End Resistance Measurements
  • Used with the PRS-801 Resistance Meter

PRS-801CC Calibration Shunt

CALIBRATION SHUNT FOR PRS-801 AND PRS-812 RESISTANCE METERS

  • 1 ohm Calibration Reference
  • For use wit hthe PRS-801 or PRS-812 Resistance Meters

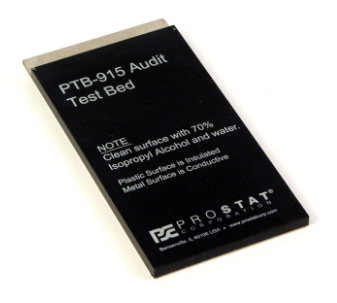

PTB-915 Audit Test Bed

AUDIT TEST BED FOR RESISTANCE METERS

  • 3 x 6 inch metal plate
  • 3 x 5.5 inch acrylic
  • Both plates assembled into 1 plate
  • Ideal for resistance measurements

PRS-801CON USB 2.0 to RS232 Serial DB9 Converter

CONVERTS THE RS232 SERIAL DB9 TO USB FOR YOUR COMPUTER

  • Converts the PRS-801 connection to USB
  • Supports Windows 10, 8, 7, Vista, 2000, XP, 98, Apple MAC OS8 or higher, Linux 2.4.0 and later, OpenBSD 2.9 and later & FreeBSD 4.7 and later
  • Installed as a standard Windows COM ports, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • Provides instant connectivity with modems, ISDN terminal adapter, PDA, bar code scanner, label printer, and devices with DB9 SERIAL ports
  • Powered by USB port. Include a 33" long USB extension cable inside the package

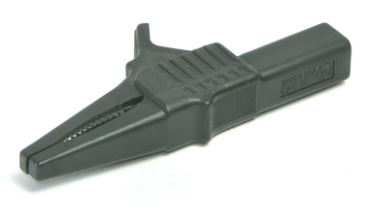

PRS-801BC Bulldog Clip

INSULATED BLACK BULLDOG CLIP FOR USE WITH PRS-801, PRS-812 AND PAS-853

  • Rated 1000V, CAT II, 32A
  • Insulated in Polyamide 6.6
  • 4 mm Rigid Socket
  • Jaw opening of 20 mm

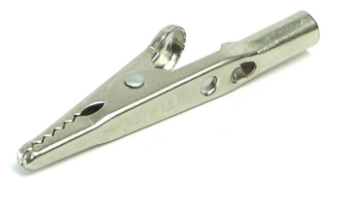

PSI-870MAC Metal Clip (2)

BARE METAL ALLIGATOR CLIP

  • Alligator Clip with Barrel
  • Rated 10 Amps
  • 4 mm Rigid Socket
  • Jaw opening of 7.9 mm

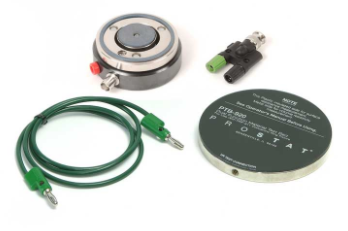

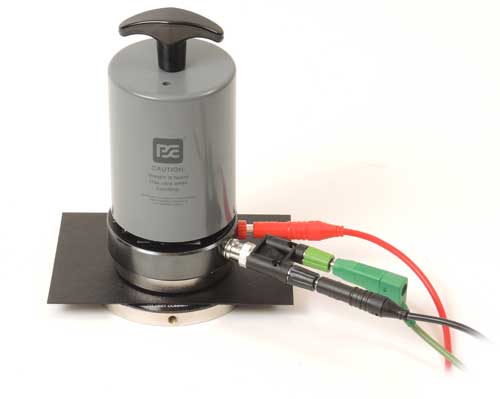

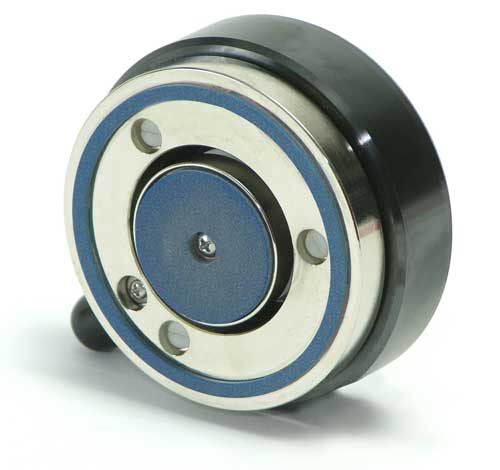

PRF-911 Concentric Ring Set

MEASURE SURFACE & VOLUME RESISTANCE OF FLAT MATERIALS

  • Used to design materials for Static Control and other Electrostatic Discharge (ESD) applications
  • Necessary for the Qualification and Verification of ESD Controlled Packaging Materials to meet current standards
  • Measures Surface Resistance per ANSI/ESD STM11.11
  • Measures Volume Resistance per ANSI/ESD STM11.12
  • Approximates Surface & Volume Resistivity per ASTM D-257
  • Incorporates a spring loaded, self-aligning center electrode feature to reduce calibration frequency
  • Its Dual Test Bed consists of an Insulated Test Surface for ANSI/ESD STM11.11 Surface Resistance measurements laminated to a Steel Test Plate used for ANSI/ESD STM 11.12 Volume Resistance measurements
  • Used with a wide range Resistance Meter and one 5 lb. Electrode. (Instrument and Electrode not included)

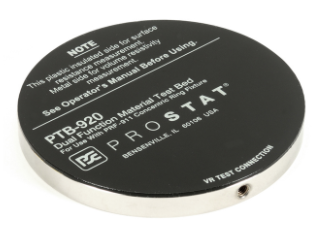

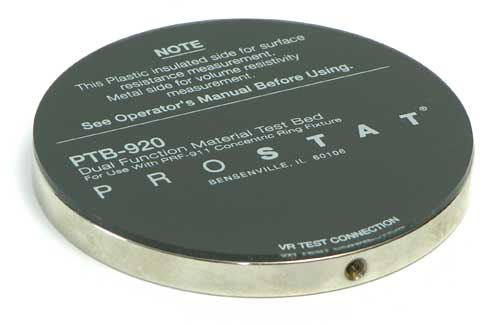

PTB-920 Dual Test Bed

DUAL TEST BED FOR PRF-911 CONCENTRIC RING

  • Acrylic insulated side for surface resistance measurements in accordance with ANSI/ESD STM11.11
  • Metal side for volume resistivity measurements in accordance with ANSI/ESD STM11.12
  • Metal surface is equipped with a standard banana receptacle

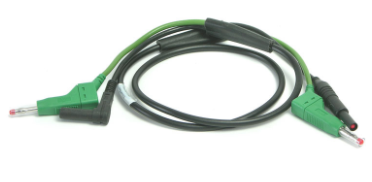

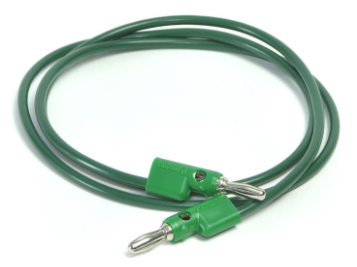

PRF-911GGL 36" Green Silicone Test Lead

GREEN GROUNDING LEAD FOR PRF-911 CONCENTRIC RING FIXTURE

  • High Resistance Silicone Test Lead
  • 2 each stackable retractable plugs
  • Used for general grounding purposes

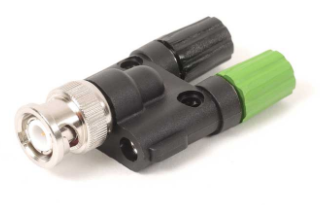

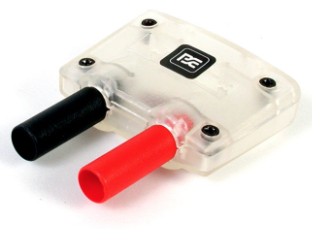

PRF-911 BNC Adapter

BNC ADAPTER FOR THE PRF-911 CONCENTRIC RING

  • For use with the PRF-911 Concentric Ring
  • Test and laboratory interconnections
  • Fully molded insulators
  • Binding post design for quick wire termination

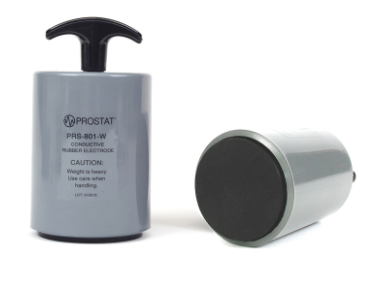

PRS-801-W 5 lbs Conductive Rubber Electrodes (1)

USE FOR RESISTANCE TESTING OF FLOORS, WORKSURFACES, FLOOR MATS, OR OTHER FLAT OBJECTS

  • Used in point to point and point to ground resistance testing.
  • Provides repeatable measurements in accordance with ESD Association standards.
  • Weighs 5 lbs. (2.27Kg) each ± 2 oz.
  • Durometer hardness of 50-70.
  • Resistance of less than 1000 ohms between two electrodes placed on a metal test plate at 10V
  • Meets the requirements of ANSI/ESD S4.1 amd ANSI/ESD S7.1

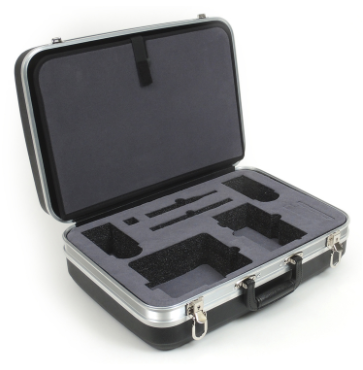

PMK-151C Carrying Case

HARD SHELL CARRYING CASE FOR RESISTANCE SYSTEM KIT SERIES

  • Molded Carrying Case
  • Foam Insert for protection of equipment
  • Includes Accessory Box

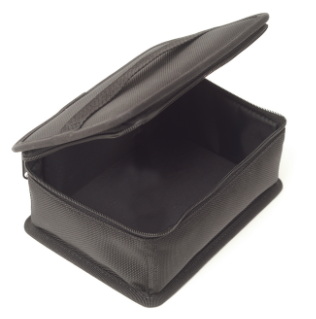

PAB-024 Accessories Case

BLACK ACCESSORY CASE FOR PROSTAT CARRYING CASES

  • Ballistic nylon construction is lightweight and durable
  • Zipper closure secures accessories and offers easy access
  • Attached hand strap for ease of carry
  • Designed to fit in most Prostat Carrying Cases
  • Color: Black



User Manuals
Model
BASIC ESD AUDITING KITS

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
