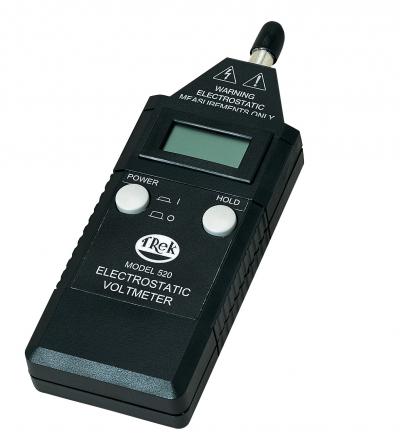

±20kV Hand-Held AC Feedback Electrostatic Voltmeter with Analog Output Monitor

Technical Details

Model: Model 520-2
Tester Category: ESD Test Equipment
Tester Type: Electrostatic Voltmeter | Analog Output
Measurement Range: 0 to ±2kV
Voltage Display: 0 to ±1999 V
Voltage Resolution: 1V
Probe-to-Surface Seperation: Range of 5 to 25 mm
Accuracy: ±5% (Full Scale)
Speed of Response: 25ms
Output Monitor: 1/1000 of the measured voltage
Output Terminal: 1.3 mm jack
Temperature Range: 15°C to 35°C
Relative Humidity: To 80%RH, non-condensing
Power Supply: 9V Alkaline Battery
Dimensions: 31 x 59 x 173 mm
Weight: 0.2 Kg

Product Files

ESD Test Equipment Brochure AES

ESD Test Equipme..

5.80 MB

All ESD products fulfill the IEC 61340 standards.
