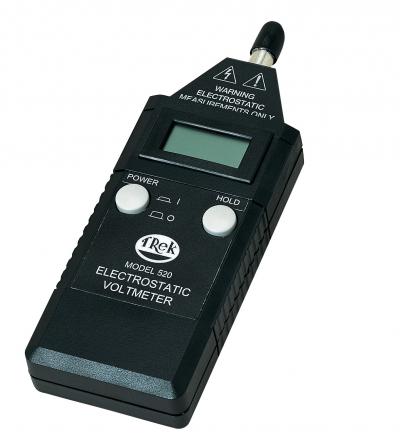

AC Feedback Electrostatic Voltmeter | Model 520-1
Back

Roll over and scroll on image to zoom

AC Feedback Electrostatic Voltmeter | Model 520-1

400-520-1-CE

HS Code : 9030.33.38.00

1.056,10 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

±20kV Hand-Held AC Feedback Electrostatic Voltmeter. Range: 0 to ±2 kV DC

Technical Details

Model: Model 520-1
Tester Category: ESD Test Equipment
Tester Type: Electrostatic Voltmeter
Measurement Range: 0 to ±2kV
Voltage Display: 0 to ±1999 V
Voltage Resolution: 1V
Probe-to-Surface Seperation: Range of 5 to 25 mm
Accuracy: ±5% (Full Scale)
Speed of Response: 400ms
Temperature Range: 15°C to 35°C
Relative Humidity: To 80%RH, non-condensing
Power Supply: 9V Alkaline Battery
Dimensions: 31 x 59 x 173 mm
Weight: 0.185 Kg

Product Files

ESD Test Equipment Brochure AES

ESD Test Equipme..

5.80 MB

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
